AGL Switch 2, 3 gang variants

esp8266 br Comes with ESPHome switch
AGL Switch 2, 3 gang variants - agl_1106062.png
AGL Switch 2, 3 gang variants - back.jpg
AGL Switch 2, 3 gang variants - open.jpg

Overview

The AGL Switch is available in Brazil. AGL

General Notes

This config was created based on the 2 gang switch that I had.

Product Images

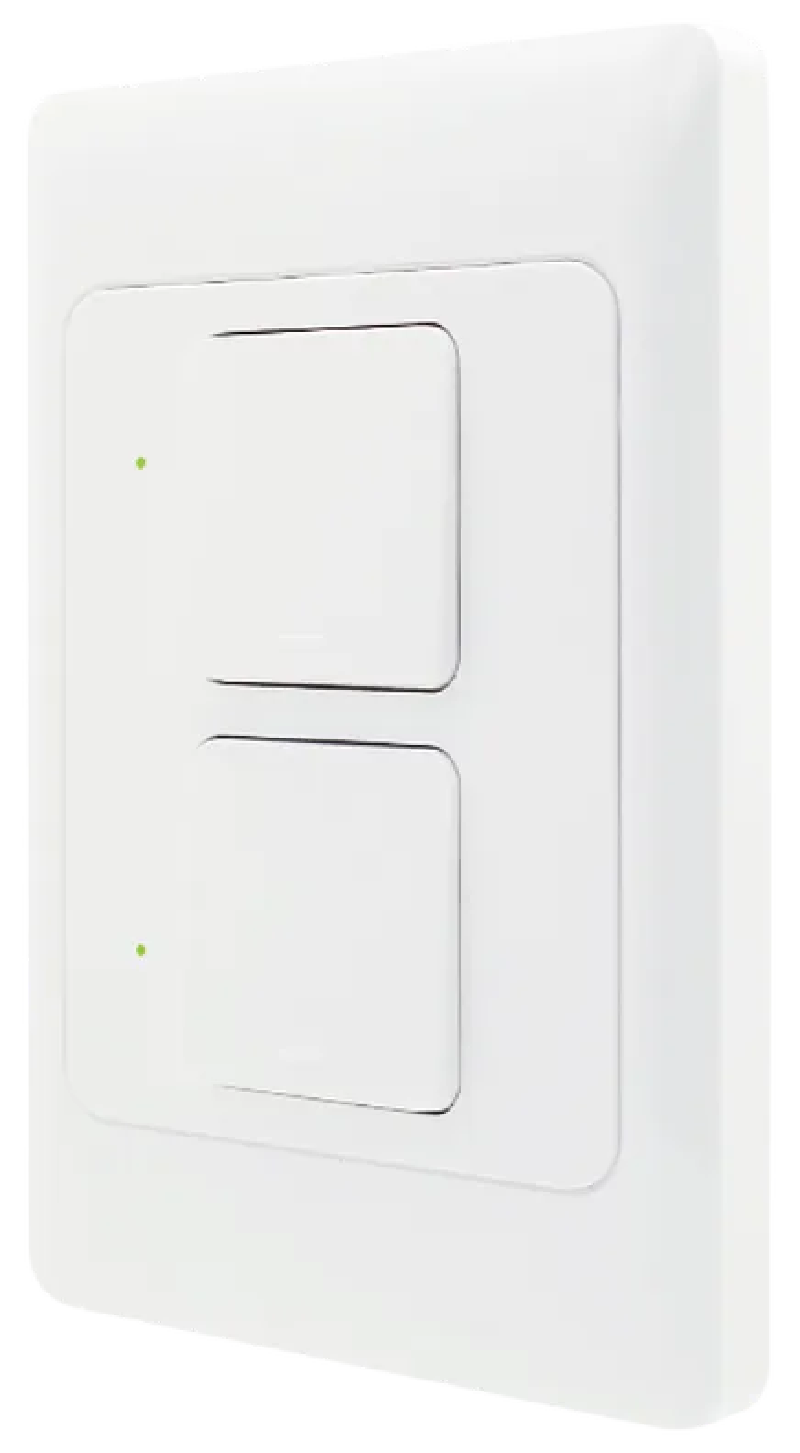

Front of 2 gang switch

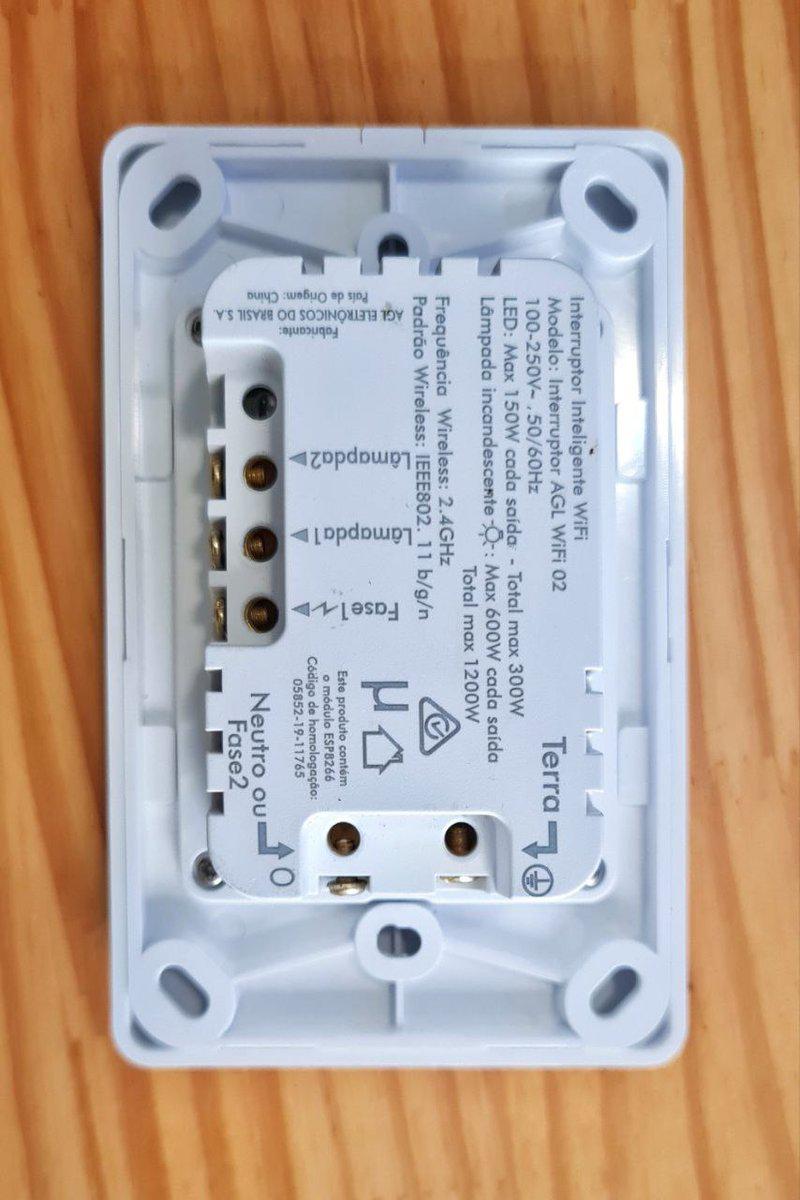

Back of 2 gang switch

GPIO Pinout

2-Gang Version

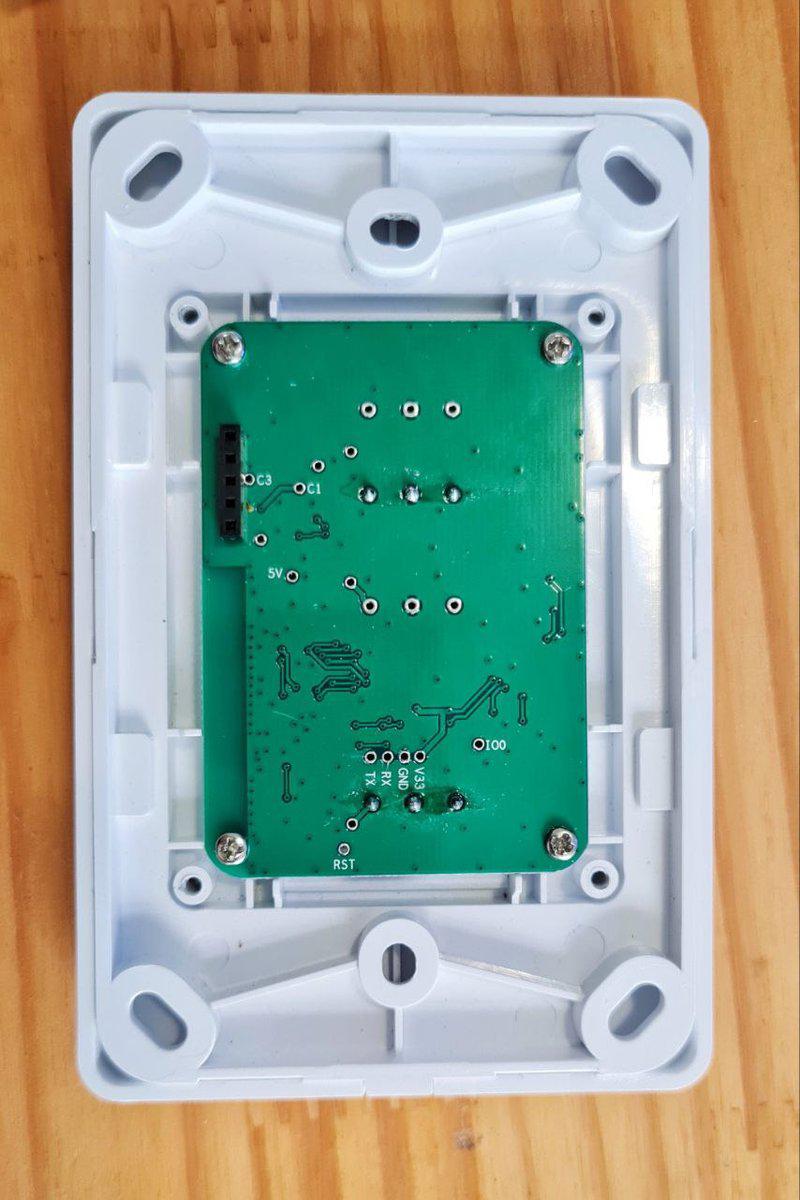

PCB

PinFunction
GPIO2Status LED
GPIO16Button 1 (HIGH = off, LOW = on)
GPIO5Button 2 (HIGH = off, LOW = on)
GPIO13Relay 1
GPIO12Relay 2

3-Gang Version

PinFunction
GPIO2Status LED
GPIO16Button 1 (HIGH = off, LOW = on)
GPIO5Button 2 (HIGH = off, LOW = on)
GPIO4Button 3 (HIGH = off, LOW = on)
GPIO13Relay 1
GPIO12Relay 2
GPIO14Relay 3

Basic Configuration (2-Gang)

esphome:
  name: agl-2-gang-switch
  friendly_name: AGL 2 Gang Switch
esp8266:
  board: esp01_1m
# Enable logging
logger:
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:
api:
  reboot_timeout: 15min
  encryption:
    key: !secret api_encryption_key
ota:
  password: !secret ota_password
sensor:
  - platform: uptime
    name: AGL 2 Gang Uptime
    update_interval: 60s
text_sensor:
  - platform: version
    name: AGL 2 Gang Version
binary_sensor:
  - platform: status
    name: AGL 2 Gang Status
  - platform: gpio
    pin:
      number: GPIO16
      inverted: True
    name: AGL 2 Gang Button 1
    on_press:
      - switch.toggle: relay_1
  - platform: gpio
    pin:
      number: GPIO5
      mode: INPUT_PULLUP
      inverted: True
    name: "AGL 2 Gang Button 2"
    on_press:
      - switch.toggle: relay_2
switch:
  - platform: restart
    name: AGL 2 Gang Restart
  - platform: gpio
    name: "AGL 2 Gang Switch 1"
    pin: GPIO13
    id: relay_1
  - platform: gpio
    name: "AGL 2 Gang Switch 2"
    pin: GPIO12
    id: relay_2
light:
  - platform: status_led
    id: blue_led
    restore_mode: ALWAYS_ON
    pin:
      number: GPIO2
      inverted: true
    internal: true
