Aoycocr X13 Outdoor Plug (2AKBP-X13)

esp8266 us Comes with ESPHome plug
View Product Page →

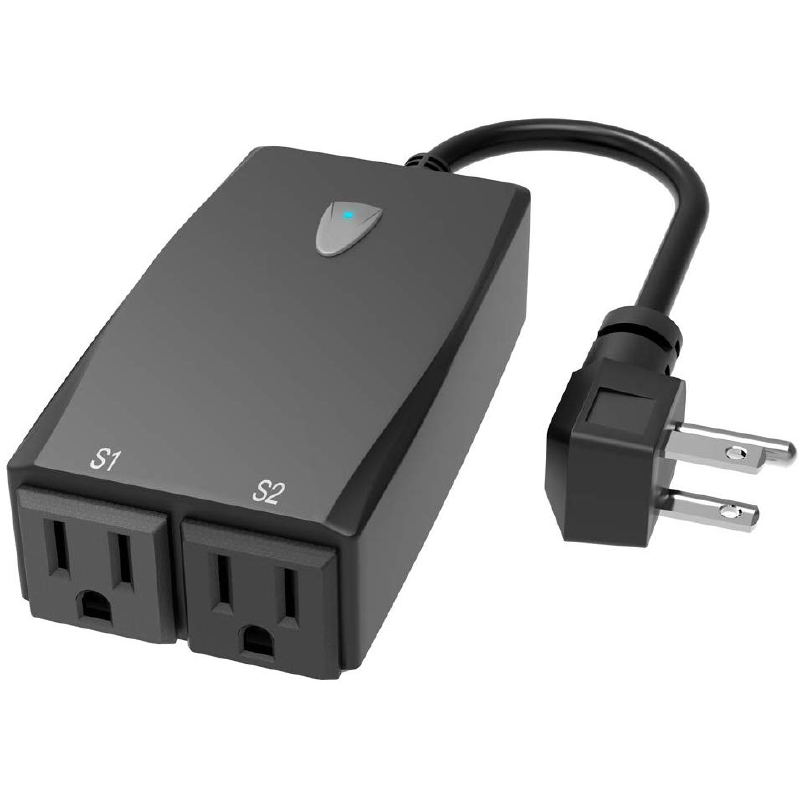

Aoycocr X13 Outdoor Plug (2AKBP-X13) - X13.png

Overview

Amazon Link All information provided is from Iprak documentation. The device has 2 indicator LEDs under the button and 2 indiviually controllable outlets. FCC filing Tasmato wiki mentioned that it might not be able to use Tuya-Convert.

Product Image

GPIO Pinout

The GPIO pinout was learned from Iprak documentation. The ESP module is ESP8266-S3 and the FCC filing provided the pins

  1. EN
  2. TOUT
  3. GPIO12
  4. GPIO14
  5. GPIO13
  6. GPIO15
  7. GPIO0
  8. GPIO2
  9. GPIO4
  10. GPIO 5
  11. RX
  12. TX
  13. VCC
  14. GND The pins are on alternate sides:
1  3  5  7  9  11  13
2  4  6  8  10 12  14

The GPIOs being used are:

  • LED#1:GPIO0, inverted
  • LED#2:GPIO2, inverted
  • Button:GPIO13
  • Relay1:GPIO15
  • Relay2:GPIO12

Basic Configuration

The below YAML template is from Iprak documentation.

substitutions:
  devicename: aoycocr_x13
  proper_devicename: Aoycocr X13
esphome:
  name: $devicename
esp8266:
  board: esp01_1m
  arduino_version: espressif8266@2.6.2
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:
captive_portal:
logger:
api:
ota:
# https://tasmota.github.io/docs/Components/
# https://templates.blakadder.com/aoycocr_X13.html
binary_sensor:
  - platform: gpio
    pin:
      number: GPIO13
    id: button
    on_press:
     - switch.toggle: relay1
     - switch.toggle: relay2
  - platform: status
    name: $devicename
switch:
  - platform: gpio
    name: "$devicename 1"
    pin: GPIO15
    id: relay1
    icon: "mdi:floor-lamp"
    #Led2 represents switch 1
    on_turn_on:
      - output.turn_on: led2
    on_turn_off:
      - output.turn_off: led2
  - platform: gpio
    name: "$devicename 2"
    pin: GPIO12
    id: relay2
    icon: "mdi:floor-lamp"
output:
  - platform: gpio
    pin: GPIO0
    id: led2
    inverted: yes
status_led:
  pin:
    number: GPIO2
    inverted: yes
