KinCony-ADR (AC Dimmer)

esp32 global Comes with ESPHome dimmer

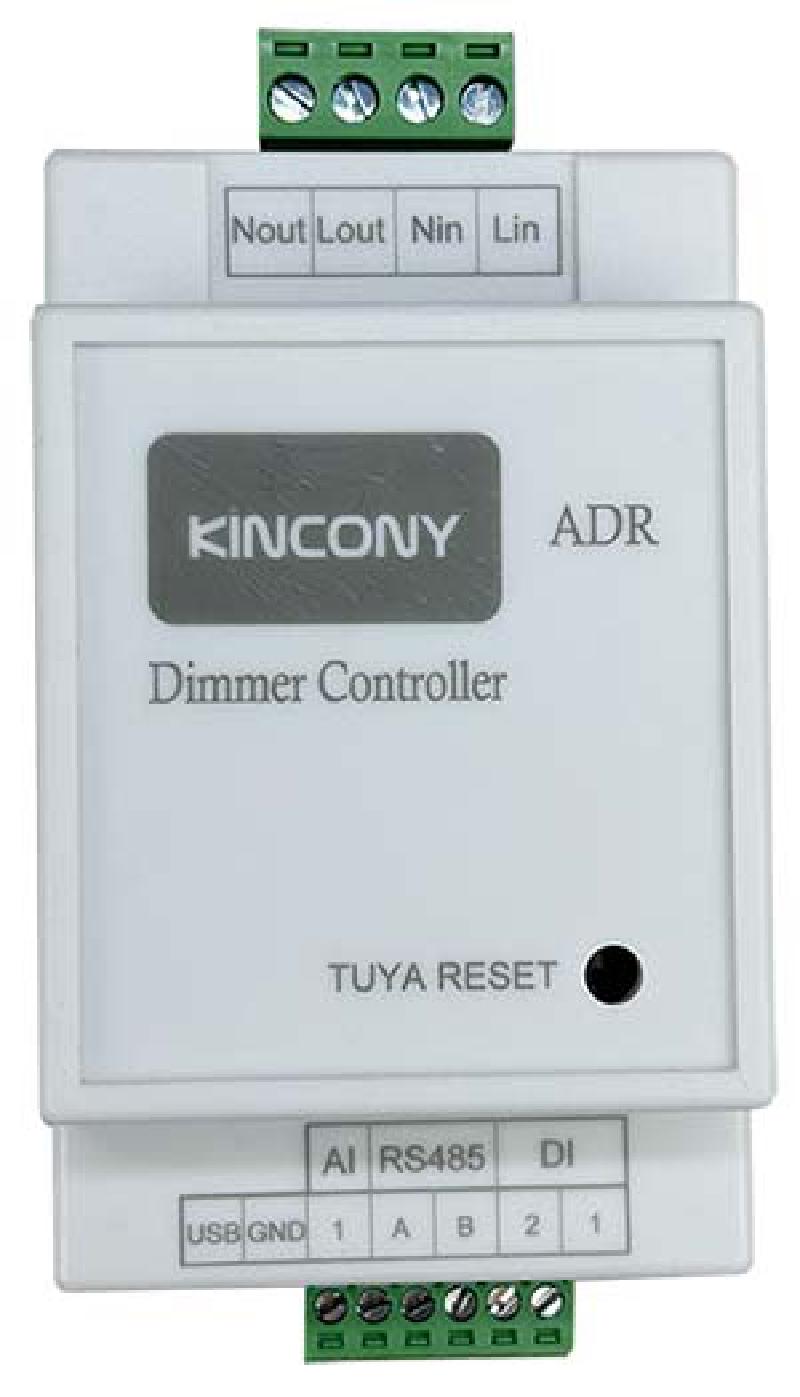

KinCony-ADR (AC Dimmer) - esp32-ac-dimmer-adr-1.jpg

Resources

ESP32 pin define details
YouTube video tour

ESPHome Configuration

Here is an example YAML configuration for the KinCony-ADR board.

esphome:
  name: adr
  friendly_name: ADR
esp32:
  board: esp32dev
  framework:
    type: arduino
# Enable logging
logger:
# Enable Home Assistant API
api:
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
captive_portal:
output:
  - platform: ac_dimmer
    id: dimmer1
    gate_pin: 33
    zero_cross_pin:
      number: 25
      mode:
        input: true
      inverted: no
    min_power: 35%
light:
  - platform: monochromatic
    output: dimmer1
    name: adr_lamp
    default_transition_length: 100ms
