MagicHome RGBW ZJ-WFMN-A V1.1 LED Controller
General Notes

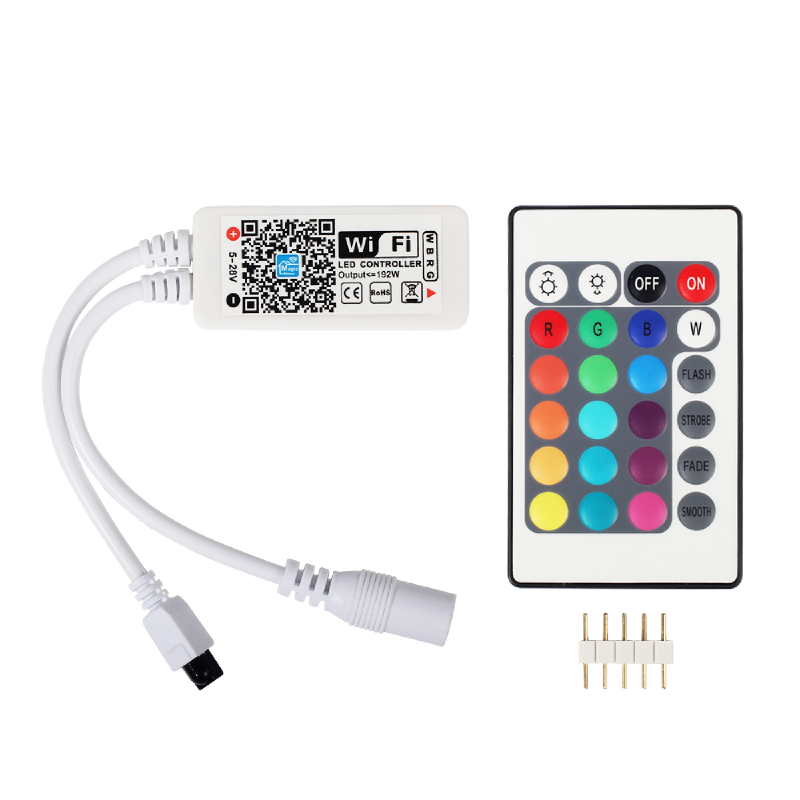

MagicHome RGBW LED controller with Infrared (IR) receiver and remote. The IR codes are incomplete to map all remote functions to a button. Only ON/OFF, Red, Green, Blue, White, Flash and Strobe effects are implemented in this configuration :information_source: Please note that MagicHome began to produce devices with BL602 chip instead of ESP. ESPHome is not compatible with BL602. Before buying make sure a controller is using the right chip.
GPIO Pinout
| Pin | Function |
|---|---|
| GPIO4 | IR Receiver |
| GPIO5 | Green Channel |
| GPIO12 | Red Channel |
| GPIO13 | Blue Channel |
| GPIO15 | White Channel |
Basic Configuration
# Basic Config
substitutions:
device_name: led_strip
device_description: RGBW LED Strip with IR remote behind television.
friendly_name: LED strip behind television
esphome:
name: ${device_name}
comment: ${device_description}
platform: ESP8266
board: esp01_1m
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap: #since we listed an SSID above, this AP mode will only enable if no WiFi connection could be made
ssid: ${friendly_name}_AP
password: !secret wifi_password
captive_portal:
# Enable logging
logger:
baudrate: 0 #Disable UART logging
# Enable Home Assistant API
api:
ota:
# Enable web server
web_server:
port: 80
remote_receiver:
pin: GPIO4
dump: all
binary_sensor:
- platform: remote_receiver
name: "Remote ON"
raw:
code: [ -9052, 4434, -636, 523, -636, 492, -603, 526, -608, 522, -606, 523, -608, 520, -606, 522, -600, 529, -610, 1594, -633, 1602, -638, 1595, -631, 1601, -628, 1606, -635, 1600, -636, 1595, -637, 1597, -634, 1600, -637, 521, -604, 1600, -637, 1596, -638, 520, -609, 521, -606, 523, -634, 494, -610, 518, -608, 1597, -638, 520, -607, 521, -607, 1597, -635, 1598, -636, 1599, -665, 1568, -644 ]
on_press:
then:
- light.turn_on: ${device_name}
- platform: remote_receiver
name: "Remote OFF"
raw:
code: [ -9008, 4482, -600, 531, -565, 564, -591, 536, -568, 564, -593, 537, -597, 529, -597, 531, -596, 534, -596, 1639, -597, 1635, -597, 1638, -598, 1638, -591, 1644, -568, 1665, -592, 1642, -566, 1670, -592, 1640, -595, 1639, -592, 1643, -567, 1665, -596, 1640, -597, 532, -595, 533, -594, 536, -596, 534, -597, 530, -567, 563, -568, 561, -599, 529, -568, 1667, -593, 1642, -591, 1642, -597 ]
on_press:
then:
- light.turn_off: ${device_name}
- platform: remote_receiver
name: "Remote BRIGHTUP"
raw:
code: [ -8998, 4475, -592, 533, -594, 535, -593, 535, -591, 536, -591, 536, -591, 537, -591, 535, -591, 536, -593, 1639, -592, 1638, -591, 1639, -589, 1640, -592, 1637, -593, 1638, -593, 1638, -591, 1637, -593, 1638, -593, 534, -592, 535, -594, 1636, -594, 535, -590, 537, -592, 535, -592, 536, -592, 534, -593, 1635, -594, 1639, -591, 536, -591, 1639, -591, 1639, -591, 1640, -591, 1639, -592 ]
on_press:
then:
- light.dim_relative:
id: ${device_name}
relative_brightness: 5%
- platform: remote_receiver
name: "Remote BRIGHTDOWN"
raw:
code: [ -9000, 4476, -589, 537, -593, 533, -593, 536, -590, 536, -593, 536, -592, 535, -592, 535, -592, 535, -593, 1638, -593, 1638, -592, 1637, -591, 1640, -591, 1638, -592, 1639, -592, 1638, -592, 1639, -592, 1637, -591, 538, -592, 1637, -592, 1639, -592, 1637, -593, 536, -591, 536, -591, 536, -593, 534, -592, 1639, -591, 537, -592, 536, -590, 535, -593, 1637, -593, 1638, -594, 1636, -593 ]
on_press:
then:
- light.dim_relative:
id: ${device_name}
relative_brightness: -5%
- platform: remote_receiver
name: "Remote RED"
raw:
code: [ -9011, 4465, -600, 558, -574, 528, -597, 556, -573, 555, -573, 524, -603, 556, -571, 530, -596, 558, -568, 1635, -597, 1633, -601, 1630, -603, 1628, -607, 1625, -596, 1633, -607, 1625, -605, 1626, -602, 1629, -600, 529, -602, 555, -592, 1607, -598, 1635, -634, 523, -572, 556, -574, 553, -573, 527, -596, 1635, -598, 1631, -596, 535, -599, 556, -567, 1633, -603, 1629, -604, 1627, -597 ]
on_press:
then:
- light.turn_on:
id: ${device_name}
red: 100%
green: 0%
blue: 0%
white: 0%
effect: None
- platform: remote_receiver
name: "Remote GREEN"
raw:
code: [ -9042, 4433, -669, 488, -611, 517, -611, 517, -636, 492, -608, 519, -609, 518, -638, 490, -611, 517, -634, 1567, -636, 1596, -663, 1569, -633, 1597, -668, 1565, -637, 1591, -636, 1597, -637, 1592, -638, 1595, -641, 1588, -666, 492, -641, 1562, -665, 1565, -640, 518, -605, 522, -604, 523, -610, 518, -606, 522, -613, 1589, -633, 524, -610, 518, -604, 1598, -627, 1603, -641, 1591, -640 ]
on_press:
then:
- light.turn_on:
id: ${device_name}
red: 0%
green: 100%
blue: 0%
white: 0%
effect: None
- platform: remote_receiver
name: "Remote BLUE"
raw:
code: [ -9041, 4434, -637, 521, -632, 494, -608, 521, -609, 519, -635, 493, -604, 524, -604, 523, -607, 521, -607, 1595, -664, 1567, -667, 1565, -664, 1568, -634, 1596, -635, 1598, -635, 1594, -669, 1566, -663, 1566, -634, 522, -637, 490, -607, 522, -636, 1565, -639, 519, -640, 487, -641, 487, -636, 491, -636, 1568, -666, 1564, -664, 1566, -666, 492, -640, 1562, -668, 1564, -671, 1559, -667 ]
on_press:
then:
- light.turn_on:
id: ${device_name}
red: 0%
green: 0%
blue: 100%
white: 0%
effect: None
- platform: remote_receiver
name: "Remote WHITE"
raw:
code: [ -9057, 4433, -634, 524, -607, 523, -607, 521, -604, 525, -609, 520, -610, 518, -638, 491, -609, 521, -607, 1595, -637, 1595, -637, 1596, -640, 1594, -628, 1604, -638, 1596, -635, 1598, -637, 1593, -640, 1595, -635, 522, -606, 1600, -632, 524, -603, 1601, -637, 520, -609, 521, -607, 521, -604, 526, -610, 1593, -631, 527, -601, 1603, -661, 499, -607, 1593, -638, 1595, -666, 1567, -636 ]
on_press:
then:
- light.turn_on:
id: ${device_name}
red: 0%
green: 0%
blue: 0%
white: 100%
effect: None
- platform: remote_receiver
name: "Remote FLASH"
raw:
code: [ -9011, 4485, -592, 537, -594, 536, -592, 536, -594, 537, -593, 537, -593, 536, -593, 537, -593, 536, -593, 1641, -594, 1642, -593, 1642, -592, 1644, -592, 1642, -592, 1644, -591, 1642, -594, 1640, -596, 1639, -594, 536, -594, 1641, -593, 1642, -593, 536, -593, 537, -594, 1641, -592, 537, -594, 536, -593, 1641, -594, 536, -594, 534, -597, 1639, -594, 1641, -592, 537, -593, 1643, -592 ]
on_press:
then:
- light.turn_on:
id: ${device_name}
effect: "In Alarm"
- platform: remote_receiver
name: "Remote STROBE"
raw:
code: [ -8971, 4511, -559, 565, -562, 568, -561, 565, -562, 566, -563, 564, -563, 567, -563, 564, -562, 565, -563, 1670, -563, 1668, -562, 1671, -560, 1671, -563, 1670, -560, 1669, -565, 1667, -563, 1673, -558, 567, -561, 564, -562, 566, -565, 563, -561, 569, -562, 567, -585, 540, -563, 571, -558, 1669, -561, 1671, -560, 1669, -563, 1670, -561, 1670, -564, 1668, -561, 1671, -560, 1672, -562 ]
on_press:
then:
- light.turn_on:
id: ${device_name}
effect: "Default Strobe"
light:
- platform: rgbw
name: ${friendly_name} # Put the name that you want to see in Home Assistant.
id: ${device_name}
red: red_channel
green: green_channel
blue: blue_channel
white: white_channel
effects: # Add few effects : Slow and fast random colors and an "in alarm" mode.
- random:
name: "Slow Random Colors"
transition_length: 30s
update_interval: 30s
- random:
name: "Fast Random Colors"
transition_length: 4s
update_interval: 5s
- strobe:
name: Default Strobe
- strobe:
name: In Alarm
colors:
- state: True
brightness: 100%
white: 0%
red: 100%
blue: 0%
green: 0%
duration: 150ms
- state: False
duration: 100ms
- state: True
brightness: 100%
white: 0%
red: 100%
blue: 0%
green: 0%
duration: 150ms
- state: False
duration: 100ms
- state: True
brightness: 100%
white: 0%
red: 0%
blue: 100%
green: 0%
duration: 150ms
- state: False
duration: 100ms
- state: True
brightness: 100%
white: 0%
red: 0%
blue: 100%
green: 0%
duration: 150ms
- state: False
duration: 100ms
output:
- platform: esp8266_pwm
id: red_channel
pin: GPIO12
- platform: esp8266_pwm
id: green_channel
pin: GPIO5
- platform: esp8266_pwm
id: blue_channel
pin: GPIO13
- platform: esp8266_pwm
id: white_channel
pin: GPIO15
Split Configuration
If you have several of these LED controllers, you may prefer to keep the shared code in one file and only put the device-specific code in the files for each LED strip. In magichome_ledstrip_common.yaml:
esphome:
name: ${device_name}
comment: ${device_description}
platform: ESP8266
board: esp01_1m
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
use_address: ${ipaddress}
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: ${friendly_name}_AP
password: !secret fallbackpass
captive_portal:
# Enable logging
logger:
baud_rate: 0 #disable UART logging
# Enable Home Assistant API
api:
encryption:
key: !secret encryption_key
# Enable OTA updates
ota:
password: !secret esphomeotapwd
# Enable web server
web_server:
port: 80
remote_receiver:
pin: GPIO4
dump: raw #Comment out if you aren't debugging IR codes
output:
- platform: esp8266_pwm
id: red_channel
pin: GPIO12
- platform: esp8266_pwm
id: green_channel
pin: GPIO5
- platform: esp8266_pwm
id: blue_channel
pin: GPIO13
- platform: esp8266_pwm
id: white_channel
pin: GPIO15
binary_sensor:
- platform: remote_receiver
name: "Remote ON"
raw:
code:
[
-9052,
4434,
-636,
523,
-636,
492,
-603,
526,
-608,
522,
-606,
523,
-608,
520,
-606,
522,
-600,
529,
-610,
1594,
-633,
1602,
-638,
1595,
-631,
1601,
-628,
1606,
-635,
1600,
-636,
1595,
-637,
1597,
-634,
1600,
-637,
521,
-604,
1600,
-637,
1596,
-638,
520,
-609,
521,
-606,
523,
-634,
494,
-610,
518,
-608,
1597,
-638,
520,
-607,
521,
-607,
1597,
-635,
1598,
-636,
1599,
-665,
1568,
-644,
]
on_press:
then:
- light.turn_on: ${device_name}
- platform: remote_receiver
name: "Remote OFF"
raw:
code:
[
-9008,
4482,
-600,
531,
-565,
564,
-591,
536,
-568,
564,
-593,
537,
-597,
529,
-597,
531,
-596,
534,
-596,
1639,
-597,
1635,
-597,
1638,
-598,
1638,
-591,
1644,
-568,
1665,
-592,
1642,
-566,
1670,
-592,
1640,
-595,
1639,
-592,
1643,
-567,
1665,
-596,
1640,
-597,
532,
-595,
533,
-594,
536,
-596,
534,
-597,
530,
-567,
563,
-568,
561,
-599,
529,
-568,
1667,
-593,
1642,
-591,
1642,
-597,
]
on_press:
then:
- light.turn_off: ${device_name}
- platform: remote_receiver
name: "Remote BRIGHTUP"
raw:
code:
[
-8998,
4475,
-592,
533,
-594,
535,
-593,
535,
-591,
536,
-591,
536,
-591,
537,
-591,
535,
-591,
536,
-593,
1639,
-592,
1638,
-591,
1639,
-589,
1640,
-592,
1637,
-593,
1638,
-593,
1638,
-591,
1637,
-593,
1638,
-593,
534,
-592,
535,
-594,
1636,
-594,
535,
-590,
537,
-592,
535,
-592,
536,
-592,
534,
-593,
1635,
-594,
1639,
-591,
536,
-591,
1639,
-591,
1639,
-591,
1640,
-591,
1639,
-592,
]
on_press:
then:
- light.dim_relative:
id: ${device_name}
relative_brightness: 5%
- platform: remote_receiver
name: "Remote BRIGHTDOWN"
raw:
code:
[
-9000,
4476,
-589,
537,
-593,
533,
-593,
536,
-590,
536,
-593,
536,
-592,
535,
-592,
535,
-592,
535,
-593,
1638,
-593,
1638,
-592,
1637,
-591,
1640,
-591,
1638,
-592,
1639,
-592,
1638,
-592,
1639,
-592,
1637,
-591,
538,
-592,
1637,
-592,
1639,
-592,
1637,
-593,
536,
-591,
536,
-591,
536,
-593,
534,
-592,
1639,
-591,
537,
-592,
536,
-590,
535,
-593,
1637,
-593,
1638,
-594,
1636,
-593,
]
on_press:
then:
- light.dim_relative:
id: ${device_name}
relative_brightness: -5%
- platform: remote_receiver
name: "Remote RED"
raw:
code:
[
-9011,
4465,
-600,
558,
-574,
528,
-597,
556,
-573,
555,
-573,
524,
-603,
556,
-571,
530,
-596,
558,
-568,
1635,
-597,
1633,
-601,
1630,
-603,
1628,
-607,
1625,
-596,
1633,
-607,
1625,
-605,
1626,
-602,
1629,
-600,
529,
-602,
555,
-592,
1607,
-598,
1635,
-634,
523,
-572,
556,
-574,
553,
-573,
527,
-596,
1635,
-598,
1631,
-596,
535,
-599,
556,
-567,
1633,
-603,
1629,
-604,
1627,
-597,
]
on_press:
then:
- light.turn_on:
id: ${device_name}
red: 100%
green: 0%
blue: 0%
white: 0%
effect: None
- platform: remote_receiver
name: "Remote GREEN"
raw:
code:
[
-9042,
4433,
-669,
488,
-611,
517,
-611,
517,
-636,
492,
-608,
519,
-609,
518,
-638,
490,
-611,
517,
-634,
1567,
-636,
1596,
-663,
1569,
-633,
1597,
-668,
1565,
-637,
1591,
-636,
1597,
-637,
1592,
-638,
1595,
-641,
1588,
-666,
492,
-641,
1562,
-665,
1565,
-640,
518,
-605,
522,
-604,
523,
-610,
518,
-606,
522,
-613,
1589,
-633,
524,
-610,
518,
-604,
1598,
-627,
1603,
-641,
1591,
-640,
]
on_press:
then:
- light.turn_on:
id: ${device_name}
red: 0%
green: 100%
blue: 0%
white: 0%
effect: None
- platform: remote_receiver
name: "Remote BLUE"
raw:
code:
[
-9041,
4434,
-637,
521,
-632,
494,
-608,
521,
-609,
519,
-635,
493,
-604,
524,
-604,
523,
-607,
521,
-607,
1595,
-664,
1567,
-667,
1565,
-664,
1568,
-634,
1596,
-635,
1598,
-635,
1594,
-669,
1566,
-663,
1566,
-634,
522,
-637,
490,
-607,
522,
-636,
1565,
-639,
519,
-640,
487,
-641,
487,
-636,
491,
-636,
1568,
-666,
1564,
-664,
1566,
-666,
492,
-640,
1562,
-668,
1564,
-671,
1559,
-667,
]
on_press:
then:
- light.turn_on:
id: ${device_name}
red: 0%
green: 0%
blue: 100%
white: 0%
effect: None
- platform: remote_receiver
name: "Remote WHITE"
raw:
code:
[
-9057,
4433,
-634,
524,
-607,
523,
-607,
521,
-604,
525,
-609,
520,
-610,
518,
-638,
491,
-609,
521,
-607,
1595,
-637,
1595,
-637,
1596,
-640,
1594,
-628,
1604,
-638,
1596,
-635,
1598,
-637,
1593,
-640,
1595,
-635,
522,
-606,
1600,
-632,
524,
-603,
1601,
-637,
520,
-609,
521,
-607,
521,
-604,
526,
-610,
1593,
-631,
527,
-601,
1603,
-661,
499,
-607,
1593,
-638,
1595,
-666,
1567,
-636,
]
on_press:
then:
- light.turn_on:
id: ${device_name}
red: 0%
green: 0%
blue: 0%
white: 100%
effect: None
- platform: remote_receiver
name: "Remote FLASH"
raw:
code:
[
-9011,
4485,
-592,
537,
-594,
536,
-592,
536,
-594,
537,
-593,
537,
-593,
536,
-593,
537,
-593,
536,
-593,
1641,
-594,
1642,
-593,
1642,
-592,
1644,
-592,
1642,
-592,
1644,
-591,
1642,
-594,
1640,
-596,
1639,
-594,
536,
-594,
1641,
-593,
1642,
-593,
536,
-593,
537,
-594,
1641,
-592,
537,
-594,
536,
-593,
1641,
-594,
536,
-594,
534,
-597,
1639,
-594,
1641,
-592,
537,
-593,
1643,
-592,
]
on_press:
then:
- light.turn_on:
id: ${device_name}
effect: "In Alarm"
- platform: remote_receiver
name: "Remote STROBE"
raw:
code:
[
-8971,
4511,
-559,
565,
-562,
568,
-561,
565,
-562,
566,
-563,
564,
-563,
567,
-563,
564,
-562,
565,
-563,
1670,
-563,
1668,
-562,
1671,
-560,
1671,
-563,
1670,
-560,
1669,
-565,
1667,
-563,
1673,
-558,
567,
-561,
564,
-562,
566,
-565,
563,
-561,
569,
-562,
567,
-585,
540,
-563,
571,
-558,
1669,
-561,
1671,
-560,
1669,
-563,
1670,
-561,
1670,
-564,
1668,
-561,
1671,
-560,
1672,
-562,
]
on_press:
then:
- light.turn_on:
id: ${device_name}
effect: "Default Strobe"
light:
- platform: rgbw
name: ${friendly_name} # Put the name that you want to see in Home Assistant.
id: ${device_name}
red: red_channel
green: green_channel
blue: blue_channel
white: white_channel
effects: # Add few effects : Slow and fast random colors and an "in alarm" mode.
- random:
name: "Slow Random Colors"
transition_length: 30s
update_interval: 30s
- random:
name: "Fast Random Colors"
transition_length: 4s
update_interval: 5s
- strobe:
name: Default Strobe
- strobe:
name: In Alarm
colors:
- state: True
brightness: 100%
white: 0%
red: 100%
blue: 0%
green: 0%
duration: 150ms
- state: False
duration: 100ms
- state: True
brightness: 100%
white: 0%
red: 100%
blue: 0%
green: 0%
duration: 150ms
- state: False
duration: 100ms
- state: True
brightness: 100%
white: 0%
red: 0%
blue: 100%
green: 0%
duration: 150ms
- state: False
duration: 100ms
- state: True
brightness: 100%
white: 0%
red: 0%
blue: 100%
green: 0%
duration: 150ms
- state: False
duration: 100ms
Then in each led strip’s yaml:
<<: !include magichome_ledstrip_common.yaml
substitutions:
device_name: led_strip
device_description: RGBW LED Strip with IR remote behind television.
friendly_name: LED strip behind television
ipaddress: 192.168.1.200
